摘要

Unity的魅力不仅在于其直观的可视化编辑器和强大的跨平台能力，更在于它为开发者提供了一个完整的生态系统。无论你是想要开发2D像素风格的独立游戏，还是要构建3D AAA级别的大型项目，Unity都能为你提供相应的解决方案。在我的开发历程中，我曾用Unity开发过移动端的休闲游戏、PC端的策略游戏，甚至还涉足了VR和AR应用的开发，每一次的项目经历都让我对Unity有了更深层次的理解。

特别值得一提的是Unity的组件化架构设计，这种设计理念不仅让游戏对象的管理变得更加灵活，也为代码的复用和维护提供了极大的便利。通过合理的组件设计和脚本编写，我们可以构建出高度模块化的游戏系统，这对于大型项目的团队协作尤为重要。同时，Unity强大的资源管理系统、物理引擎集成、动画系统以及渲染管线，都为游戏开发提供了坚实的技术基础。

在本文中，我将从Unity的基础概念开始，逐步深入到高级架构设计，通过实际的代码示例和项目经验，为大家展示Unity游戏开发的完整流程和最佳实践。

1. Unity核心架构与设计理念

1.1 组件化系统的精髓

Unity采用了Entity-Component-System（ECS）的设计理念，虽然传统的Unity并非严格的ECS架构，但其GameObject-Component模式体现了相似的思想。每个GameObject都是一个容器，通过添加不同的Component来赋予其特定的功能。

using UnityEngine;

// 玩家控制器组件
public class PlayerController : MonoBehaviour
{
    [Header("移动参数")]
    public float moveSpeed = 5.0f;
    public float jumpForce = 10.0f;

    [Header("组件引用")]
    private Rigidbody2D rb;
    private Animator animator;
    private SpriteRenderer spriteRenderer;

    // 输入系统
    private Vector2 moveInput;
    private bool isGrounded;

    void Start()
    {
        // 获取必要的组件引用
        rb = GetComponent<Rigidbody2D>();
        animator = GetComponent<Animator>();
        spriteRenderer = GetComponent<SpriteRenderer>();

        // 验证组件完整性
        ValidateComponents();
    }

    void Update()
    {
        HandleInput();
        UpdateAnimation();
    }

    void FixedUpdate()
    {
        HandleMovement();
    }

    private void HandleInput()
    {
        // 获取水平输入
        moveInput.x = Input.GetAxisRaw("Horizontal");

        // 跳跃输入检测
        if (Input.GetKeyDown(KeyCode.Space) && isGrounded)
        {
            Jump();
        }
    }

    private void HandleMovement()
    {
        // 应用水平移动
        rb.velocity = new Vector2(moveInput.x * moveSpeed, rb.velocity.y);

        // 角色翻转
        if (moveInput.x != 0)
        {
            spriteRenderer.flipX = moveInput.x < 0;
        }
    }

    private void Jump()
    {
        rb.velocity = new Vector2(rb.velocity.x, jumpForce);
        isGrounded = false;
        animator.SetTrigger("Jump");
    }

    private void ValidateComponents()
    {
        if (rb == null) Debug.LogError("缺少Rigidbody2D组件！");
        if (animator == null) Debug.LogWarning("未找到Animator组件");
        if (spriteRenderer == null) Debug.LogError("缺少SpriteRenderer组件！");
    }

    // 地面检测
    private void OnCollisionEnter2D(Collision2D collision)
    {
        if (collision.gameObject.CompareTag("Ground"))
        {
            isGrounded = true;
            animator.SetBool("IsGrounded", true);
        }
    }
}

这个PlayerController展示了Unity组件系统的核心思想：单一职责、组件协作、松耦合设计。每个组件专注于特定功能，通过GetComponent方法实现组件间的通信。

1.2 场景管理与生命周期

Unity的场景管理系统为游戏的不同状态提供了清晰的组织结构。理解MonoBehaviour的生命周期对于编写高效的游戏逻辑至关重要。

using UnityEngine;
using UnityEngine.SceneManagement;
using System.Collections;

// 游戏管理器 - 单例模式
public class GameManager : MonoBehaviour
{
    public static GameManager Instance { get; private set; }

    [Header("游戏状态")]
    public GameState currentState = GameState.Menu;

    [Header("场景配置")]
    public string menuSceneName = "MainMenu";
    public string gameSceneName = "GameLevel";
    public string gameOverSceneName = "GameOver";

    // 游戏数据
    private int playerScore = 0;
    private int playerLives = 3;

    // 事件系统
    public System.Action<GameState> OnGameStateChanged;
    public System.Action<int> OnScoreChanged;
    public System.Action<int> OnLivesChanged;

    void Awake()
    {
        // 单例模式实现
        if (Instance == null)
        {
            Instance = this;
            DontDestroyOnLoad(gameObject);
            InitializeGame();
        }
        else
        {
            Destroy(gameObject);
        }
    }

    void Start()
    {
        // 订阅场景加载事件
        SceneManager.sceneLoaded += OnSceneLoaded;
    }

    void OnDestroy()
    {
        // 取消事件订阅，防止内存泄漏
        SceneManager.sceneLoaded -= OnSceneLoaded;
    }

    private void InitializeGame()
    {
        // 设置目标帧率
        Application.targetFrameRate = 60;

        // 初始化游戏数据
        ResetGameData();

        Debug.Log("游戏管理器初始化完成");
    }

    public void ChangeGameState(GameState newState)
    {
        if (currentState == newState) return;

        GameState previousState = currentState;
        currentState = newState;

        Debug.Log($"游戏状态变更: {previousState} -> {newState}");

        // 触发状态变更事件
        OnGameStateChanged?.Invoke(newState);

        // 根据状态执行相应逻辑
        HandleStateChange(newState);
    }

    private void HandleStateChange(GameState state)
    {
        switch (state)
        {
            case GameState.Menu:
                LoadScene(menuSceneName);
                break;
            case GameState.Playing:
                LoadScene(gameSceneName);
                break;
            case GameState.GameOver:
                StartCoroutine(HandleGameOver());
                break;
            case GameState.Paused:
                Time.timeScale = 0f;
                break;
        }
    }

    public void LoadScene(string sceneName)
    {
        StartCoroutine(LoadSceneAsync(sceneName));
    }

    private IEnumerator LoadSceneAsync(string sceneName)
    {
        // 显示加载界面
        // LoadingUI.Instance?.Show();

        AsyncOperation asyncLoad = SceneManager.LoadSceneAsync(sceneName);
        asyncLoad.allowSceneActivation = false;

        // 等待场景加载完成
        while (asyncLoad.progress < 0.9f)
        {
            // 更新加载进度
            float progress = asyncLoad.progress / 0.9f;
            // LoadingUI.Instance?.UpdateProgress(progress);
            yield return null;
        }

        // 激活场景
        asyncLoad.allowSceneActivation = true;

        // 隐藏加载界面
        // LoadingUI.Instance?.Hide();
    }

    private void OnSceneLoaded(Scene scene, LoadSceneMode mode)
    {
        Debug.Log($"场景加载完成: {scene.name}");

        // 根据场景执行初始化逻辑
        switch (scene.name)
        {
            case "GameLevel":
                InitializeGameLevel();
                break;
            case "MainMenu":
                InitializeMainMenu();
                break;
        }
    }

    private IEnumerator HandleGameOver()
    {
        yield return new WaitForSeconds(2f);
        LoadScene(gameOverSceneName);
    }

    // 游戏数据管理
    public void AddScore(int points)
    {
        playerScore += points;
        OnScoreChanged?.Invoke(playerScore);
    }

    public void LoseLife()
    {
        playerLives--;
        OnLivesChanged?.Invoke(playerLives);

        if (playerLives <= 0)
        {
            ChangeGameState(GameState.GameOver);
        }
    }

    private void ResetGameData()
    {
        playerScore = 0;
        playerLives = 3;
        Time.timeScale = 1f;
    }

    private void InitializeGameLevel()
    {
        ChangeGameState(GameState.Playing);
        // 初始化游戏关卡特定逻辑
    }

    private void InitializeMainMenu()
    {
        ChangeGameState(GameState.Menu);
        // 初始化主菜单特定逻辑
    }
}

// 游戏状态枚举
public enum GameState
{
    Menu,
    Playing,
    Paused,
    GameOver
}

这个GameManager展示了Unity中单例模式的实现、场景管理、事件系统以及游戏状态管理的最佳实践。

2. Unity渲染管线与性能优化

2.1 渲染管线深度解析

Unity提供了多种渲染管线选择，包括内置渲染管线、通用渲染管线(URP)和高清渲染管线(HDRP)。理解渲染管线的工作原理对于性能优化至关重要。

图1：Unity渲染管线流程图 - 展示从几何体到最终渲染的完整流程

2.2 性能优化实战

性能优化是Unity开发中的重要环节，涉及CPU和GPU两个方面的优化策略。

using UnityEngine;
using System.Collections.Generic;
using UnityEngine.Profiling;

// 对象池管理器 - 减少GC压力
public class ObjectPool : MonoBehaviour
{
    [System.Serializable]
    public class PoolItem
    {
        public string tag;
        public GameObject prefab;
        public int initialSize;
        public int maxSize;
        public bool allowGrowth;
    }

    [Header("对象池配置")]
    public List<PoolItem> poolItems = new List<PoolItem>();

    // 对象池字典
    private Dictionary<string, Queue<GameObject>> poolDictionary;
    private Dictionary<string, PoolItem> poolConfigs;
    private Dictionary<string, Transform> poolParents;

    void Start()
    {
        InitializePools();
    }

    private void InitializePools()
    {
        poolDictionary = new Dictionary<string, Queue<GameObject>>();
        poolConfigs = new Dictionary<string, PoolItem>();
        poolParents = new Dictionary<string, Transform>();

        foreach (PoolItem item in poolItems)
        {
            // 创建对象池容器
            GameObject poolParent = new GameObject($"Pool_{item.tag}");
            poolParent.transform.SetParent(transform);
            poolParents[item.tag] = poolParent.transform;

            // 初始化对象队列
            Queue<GameObject> objectQueue = new Queue<GameObject>();

            // 预创建对象
            for (int i = 0; i < item.initialSize; i++)
            {
                GameObject obj = CreatePooledObject(item.prefab, poolParent.transform);
                objectQueue.Enqueue(obj);
            }

            poolDictionary[item.tag] = objectQueue;
            poolConfigs[item.tag] = item;
        }

        Debug.Log($"对象池初始化完成，共创建 {poolItems.Count} 个池");
    }

    public GameObject SpawnFromPool(string tag, Vector3 position, Quaternion rotation)
    {
        if (!poolDictionary.ContainsKey(tag))
        {
            Debug.LogWarning($"对象池中不存在标签: {tag}");
            return null;
        }

        GameObject objectToSpawn;
        Queue<GameObject> pool = poolDictionary[tag];
        PoolItem config = poolConfigs[tag];

        if (pool.Count > 0)
        {
            // 从池中获取对象
            objectToSpawn = pool.Dequeue();
        }
        else if (config.allowGrowth && GetActiveObjectCount(tag) < config.maxSize)
        {
            // 动态创建新对象
            objectToSpawn = CreatePooledObject(config.prefab, poolParents[tag]);
            Debug.Log($"动态扩展对象池: {tag}");
        }
        else
        {
            Debug.LogWarning($"对象池 {tag} 已达到最大容量");
            return null;
        }

        // 设置对象状态
        objectToSpawn.transform.position = position;
        objectToSpawn.transform.rotation = rotation;
        objectToSpawn.SetActive(true);

        // 通知对象被激活
        IPoolable poolable = objectToSpawn.GetComponent<IPoolable>();
        poolable?.OnObjectSpawn();

        return objectToSpawn;
    }

    public void ReturnToPool(string tag, GameObject obj)
    {
        if (!poolDictionary.ContainsKey(tag))
        {
            Debug.LogWarning($"尝试返回未知池: {tag}");
            Destroy(obj);
            return;
        }

        // 通知对象被回收
        IPoolable poolable = obj.GetComponent<IPoolable>();
        poolable?.OnObjectDespawn();

        // 重置对象状态
        obj.SetActive(false);
        obj.transform.SetParent(poolParents[tag]);

        // 返回到池中
        poolDictionary[tag].Enqueue(obj);
    }

    private GameObject CreatePooledObject(GameObject prefab, Transform parent)
    {
        GameObject obj = Instantiate(prefab, parent);
        obj.SetActive(false);

        // 确保对象有PoolableObject组件
        if (obj.GetComponent<PoolableObject>() == null)
        {
            obj.AddComponent<PoolableObject>();
        }

        return obj;
    }

    private int GetActiveObjectCount(string tag)
    {
        if (!poolParents.ContainsKey(tag)) return 0;

        int activeCount = 0;
        Transform parent = poolParents[tag];

        for (int i = 0; i < parent.childCount; i++)
        {
            if (parent.GetChild(i).gameObject.activeInHierarchy)
                activeCount++;
        }

        return activeCount;
    }

    // 性能监控
    public void LogPoolStatistics()
    {
        Profiler.BeginSample("ObjectPool.LogStatistics");

        foreach (var kvp in poolDictionary)
        {
            string tag = kvp.Key;
            int pooledCount = kvp.Value.Count;
            int activeCount = GetActiveObjectCount(tag);
            int totalCount = pooledCount + activeCount;

            Debug.Log($"池 [{tag}] - 总计:{totalCount}, 活跃:{activeCount}, 池中:{pooledCount}");
        }

        Profiler.EndSample();
    }
}

// 可池化对象接口
public interface IPoolable
{
    void OnObjectSpawn();
    void OnObjectDespawn();
}

// 可池化对象基类
public class PoolableObject : MonoBehaviour, IPoolable
{
    [Header("池化配置")]
    public string poolTag;
    public float autoReturnTime = 0f;

    private Coroutine autoReturnCoroutine;

    public virtual void OnObjectSpawn()
    {
        // 自动回收计时器
        if (autoReturnTime > 0)
        {
            autoReturnCoroutine = StartCoroutine(AutoReturnToPool());
        }
    }

    public virtual void OnObjectDespawn()
    {
        // 停止自动回收计时器
        if (autoReturnCoroutine != null)
        {
            StopCoroutine(autoReturnCoroutine);
            autoReturnCoroutine = null;
        }
    }

    private System.Collections.IEnumerator AutoReturnToPool()
    {
        yield return new WaitForSeconds(autoReturnTime);
        ReturnToPool();
    }

    public void ReturnToPool()
    {
        ObjectPool poolManager = FindObjectOfType<ObjectPool>();
        if (poolManager != null)
        {
            poolManager.ReturnToPool(poolTag, gameObject);
        }
        else
        {
            Destroy(gameObject);
        }
    }
}

这个对象池系统展示了Unity中内存管理和性能优化的核心技术，通过减少频繁的实例化和销毁操作来提升游戏性能。

3. Unity物理系统与碰撞检测

3.1 物理引擎架构

Unity集成了PhysX物理引擎，提供了完整的2D和3D物理模拟能力。理解物理系统的工作原理对于创建真实的游戏体验至关重要。

图2：Unity物理系统交互时序图 - 展示物理组件间的协作流程

3.2 高级碰撞检测系统

using UnityEngine;
using System.Collections.Generic;

// 高级碰撞检测管理器
public class AdvancedCollisionSystem : MonoBehaviour
{
    [Header("碰撞层配置")]
    public LayerMask playerLayer = 1 << 8;
    public LayerMask enemyLayer = 1 << 9;
    public LayerMask environmentLayer = 1 << 10;
    public LayerMask pickupLayer = 1 << 11;

    [Header("检测参数")]
    public float raycastDistance = 1.0f;
    public int maxRaycastHits = 10;

    // 碰撞事件系统
    public System.Action<CollisionInfo> OnCollisionDetected;

    // 碰撞缓存
    private RaycastHit[] raycastHits;
    private List<CollisionInfo> activeCollisions;

    void Start()
    {
        InitializeCollisionSystem();
    }

    void FixedUpdate()
    {
        UpdateCollisionDetection();
    }

    private void InitializeCollisionSystem()
    {
        raycastHits = new RaycastHit[maxRaycastHits];
        activeCollisions = new List<CollisionInfo>();

        // 配置物理设置
        Physics.defaultContactOffset = 0.01f;
        Physics.sleepThreshold = 0.005f;
        Physics.defaultSolverIterations = 6;
        Physics.defaultSolverVelocityIterations = 1;

        Debug.Log("高级碰撞检测系统初始化完成");
    }

    private void UpdateCollisionDetection()
    {
        // 清理过期的碰撞信息
        activeCollisions.RemoveAll(collision =>
            collision.timeStamp + collision.duration < Time.fixedTime);
    }

    // 射线检测 - 用于精确的距离检测
    public bool RaycastDetection(Vector3 origin, Vector3 direction,
        float distance, LayerMask layerMask, out RaycastHit hitInfo)
    {
        return Physics.Raycast(origin, direction, out hitInfo, distance, layerMask);
    }

    // 球形检测 - 用于范围攻击或触发区域
    public Collider[] SphereDetection(Vector3 center, float radius, LayerMask layerMask)
    {
        return Physics.OverlapSphere(center, radius, layerMask);
    }

    // 胶囊检测 - 用于角色控制器
    public bool CapsuleDetection(Vector3 point1, Vector3 point2,
        float radius, LayerMask layerMask)
    {
        return Physics.CheckCapsule(point1, point2, radius, layerMask);
    }

    // 复合碰撞检测 - 组合多种检测方式
    public CollisionResult ComplexCollisionCheck(Transform target, CollisionConfig config)
    {
        CollisionResult result = new CollisionResult();
        Vector3 position = target.position;

        // 1. 前方射线检测
        if (config.useRaycast)
        {
            Vector3 forward = target.forward;
            if (RaycastDetection(position, forward, config.raycastDistance,
                config.targetLayers, out RaycastHit hit))
            {
                result.hasRaycastHit = true;
                result.raycastHit = hit;
                result.raycastDistance = hit.distance;
            }
        }

        // 2. 周围球形检测
        if (config.useSphereCheck)
        {
            Collider[] nearbyObjects = SphereDetection(position,
                config.sphereRadius, config.targetLayers);
            result.nearbyColliders = nearbyObjects;
            result.nearbyCount = nearbyObjects.Length;
        }

        // 3. 地面检测
        if (config.useGroundCheck)
        {
            Vector3 groundCheckOrigin = position + Vector3.up * 0.1f;
            if (RaycastDetection(groundCheckOrigin, Vector3.down,
                config.groundCheckDistance, config.groundLayers, out RaycastHit groundHit))
            {
                result.isGrounded = true;
                result.groundHit = groundHit;
                result.groundDistance = groundHit.distance;
            }
        }

        return result;
    }

    // 碰撞事件处理
    public void RegisterCollision(Collider collider1, Collider collider2,
        CollisionType type, float duration = 0.1f)
    {
        CollisionInfo collision = new CollisionInfo
        {
            collider1 = collider1,
            collider2 = collider2,
            type = type,
            timeStamp = Time.fixedTime,
            duration = duration,
            contactPoint = GetContactPoint(collider1, collider2)
        };

        activeCollisions.Add(collision);
        OnCollisionDetected?.Invoke(collision);
    }

    private Vector3 GetContactPoint(Collider col1, Collider col2)
    {
        // 计算两个碰撞器之间的接触点
        Vector3 direction = (col2.transform.position - col1.transform.position).normalized;
        Vector3 point1 = col1.ClosestPoint(col2.transform.position);
        Vector3 point2 = col2.ClosestPoint(col1.transform.position);

        return (point1 + point2) * 0.5f;
    }

    // 可视化调试
    void OnDrawGizmos()
    {
        if (!Application.isPlaying) return;

        // 绘制活跃的碰撞信息
        Gizmos.color = Color.red;
        foreach (CollisionInfo collision in activeCollisions)
        {
            if (collision.collider1 != null && collision.collider2 != null)
            {
                Gizmos.DrawWireSphere(collision.contactPoint, 0.1f);
                Gizmos.DrawLine(collision.collider1.transform.position,
                               collision.collider2.transform.position);
            }
        }
    }
}

// 碰撞配置类
[System.Serializable]
public class CollisionConfig
{
    [Header("射线检测")]
    public bool useRaycast = true;
    public float raycastDistance = 2.0f;

    [Header("球形检测")]
    public bool useSphereCheck = true;
    public float sphereRadius = 1.0f;

    [Header("地面检测")]
    public bool useGroundCheck = true;
    public float groundCheckDistance = 0.2f;

    [Header("层级设置")]
    public LayerMask targetLayers = -1;
    public LayerMask groundLayers = 1;
}

// 碰撞结果类
public class CollisionResult
{
    public bool hasRaycastHit;
    public RaycastHit raycastHit;
    public float raycastDistance;

    public Collider[] nearbyColliders;
    public int nearbyCount;

    public bool isGrounded;
    public RaycastHit groundHit;
    public float groundDistance;
}

// 碰撞信息类
public class CollisionInfo
{
    public Collider collider1;
    public Collider collider2;
    public CollisionType type;
    public Vector3 contactPoint;
    public float timeStamp;
    public float duration;
}

// 碰撞类型枚举
public enum CollisionType
{
    PlayerEnemy,
    PlayerPickup,
    PlayerEnvironment,
    EnemyEnvironment,
    ProjectileTarget
}

这个高级碰撞检测系统展示了Unity中复杂物理交互的实现方式，包括多种检测方法的组合使用和性能优化策略。

4. Unity动画系统与状态机

4.1 Animator Controller深度应用

Unity的动画系统基于状态机设计，通过Animator Controller可以创建复杂的动画逻辑和状态转换。

图3：角色动画状态机图 - 展示复杂的动画状态转换逻辑

4.2 程序化动画控制器

using UnityEngine;
using System.Collections.Generic;

// 高级动画控制器
public class AdvancedAnimationController : MonoBehaviour
{
    [Header("动画组件")]
    public Animator animator;
    public AnimationClip[] animationClips;

    [Header("动画参数")]
    public float transitionSpeed = 5.0f;
    public float animationBlendTime = 0.2f;

    [Header("IK设置")]
    public bool useIK = true;
    public Transform leftHandTarget;
    public Transform rightHandTarget;
    public Transform lookAtTarget;

    // 动画状态缓存
    private Dictionary<string, int> animationHashes;
    private Dictionary<string, AnimationClip> clipDictionary;
    private AnimationState currentState;
    private AnimationState previousState;

    // 动画事件系统
    public System.Action<string> OnAnimationStart;
    public System.Action<string> OnAnimationEnd;
    public System.Action<string, float> OnAnimationProgress;

    // 动画队列
    private Queue<AnimationRequest> animationQueue;
    private bool isProcessingQueue;

    void Start()
    {
        InitializeAnimationSystem();
    }

    void Update()
    {
        UpdateAnimationSystem();
    }

    void OnAnimatorIK(int layerIndex)
    {
        if (useIK && animator != null)
        {
            HandleIKTargets(layerIndex);
        }
    }

    private void InitializeAnimationSystem()
    {
        // 验证组件
        if (animator == null)
            animator = GetComponent<Animator>();

        if (animator == null)
        {
            Debug.LogError("未找到Animator组件！");
            return;
        }

        // 初始化哈希表
        animationHashes = new Dictionary<string, int>();
        clipDictionary = new Dictionary<string, AnimationClip>();
        animationQueue = new Queue<AnimationRequest>();

        // 缓存动画剪辑
        foreach (AnimationClip clip in animationClips)
        {
            if (clip != null)
            {
                string clipName = clip.name;
                animationHashes[clipName] = Animator.StringToHash(clipName);
                clipDictionary[clipName] = clip;
            }
        }

        // 初始化状态
        currentState = new AnimationState("Idle", 0);

        Debug.Log($"动画系统初始化完成，加载 {animationClips.Length} 个动画剪辑");
    }

    private void UpdateAnimationSystem()
    {
        // 处理动画队列
        ProcessAnimationQueue();

        // 更新动画进度
        UpdateAnimationProgress();

        // 检查状态转换
        CheckStateTransitions();
    }

    // 播放动画 - 基础版本
    public void PlayAnimation(string animationName, float fadeTime = -1)
    {
        if (fadeTime < 0) fadeTime = animationBlendTime;

        if (animationHashes.ContainsKey(animationName))
        {
            int hash = animationHashes[animationName];
            animator.CrossFade(hash, fadeTime);

            // 更新状态
            previousState = currentState;
            currentState = new AnimationState(animationName, Time.time);

            OnAnimationStart?.Invoke(animationName);
        }
        else
        {
            Debug.LogWarning($"未找到动画: {animationName}");
        }
    }

    // 播放动画 - 高级版本
    public void PlayAnimationAdvanced(AnimationRequest request)
    {
        if (request.immediate)
        {
            ExecuteAnimationRequest(request);
        }
        else
        {
            animationQueue.Enqueue(request);
        }
    }

    private void ExecuteAnimationRequest(AnimationRequest request)
    {
        // 设置动画参数
        foreach (var param in request.parameters)
        {
            SetAnimatorParameter(param.Key, param.Value);
        }

        // 播放动画
        PlayAnimation(request.animationName, request.fadeTime);

        // 设置播放速度
        if (request.playbackSpeed != 1.0f)
        {
            animator.speed = request.playbackSpeed;
        }

        // 执行回调
        request.onComplete?.Invoke();
    }

    private void ProcessAnimationQueue()
    {
        if (isProcessingQueue || animationQueue.Count == 0) return;

        // 检查当前动画是否可以被打断
        if (CanInterruptCurrentAnimation())
        {
            isProcessingQueue = true;
            AnimationRequest nextRequest = animationQueue.Dequeue();
            ExecuteAnimationRequest(nextRequest);
            isProcessingQueue = false;
        }
    }

    private bool CanInterruptCurrentAnimation()
    {
        if (currentState == null) return true;

        // 检查当前动画的可打断性
        AnimatorStateInfo stateInfo = animator.GetCurrentAnimatorStateInfo(0);

        // 如果动画播放时间超过50%，允许打断
        return stateInfo.normalizedTime > 0.5f ||
               !animator.IsInTransition(0);
    }

    // 设置动画参数
    public void SetAnimatorParameter(string paramName, object value)
    {
        if (animator == null) return;

        try
        {
            switch (value)
            {
                case bool boolValue:
                    animator.SetBool(paramName, boolValue);
                    break;
                case int intValue:
                    animator.SetInteger(paramName, intValue);
                    break;
                case float floatValue:
                    animator.SetFloat(paramName, floatValue);
                    break;
                case string triggerName when paramName == "Trigger":
                    animator.SetTrigger(triggerName);
                    break;
            }
        }
        catch (System.Exception e)
        {
            Debug.LogError($"设置动画参数失败: {paramName} = {value}, 错误: {e.Message}");
        }
    }

    // IK目标处理
    private void HandleIKTargets(int layerIndex)
    {
        if (layerIndex != 0) return;

        // 左手IK
        if (leftHandTarget != null)
        {
            animator.SetIKPositionWeight(AvatarIKGoal.LeftHand, 1.0f);
            animator.SetIKRotationWeight(AvatarIKGoal.LeftHand, 1.0f);
            animator.SetIKPosition(AvatarIKGoal.LeftHand, leftHandTarget.position);
            animator.SetIKRotation(AvatarIKGoal.LeftHand, leftHandTarget.rotation);
        }

        // 右手IK
        if (rightHandTarget != null)
        {
            animator.SetIKPositionWeight(AvatarIKGoal.RightHand, 1.0f);
            animator.SetIKRotationWeight(AvatarIKGoal.RightHand, 1.0f);
            animator.SetIKPosition(AvatarIKGoal.RightHand, rightHandTarget.position);
            animator.SetIKRotation(AvatarIKGoal.RightHand, rightHandTarget.rotation);
        }

        // 视线跟踪
        if (lookAtTarget != null)
        {
            animator.SetLookAtWeight(1.0f);
            animator.SetLookAtPosition(lookAtTarget.position);
        }
    }

    private void UpdateAnimationProgress()
    {
        if (currentState == null) return;

        AnimatorStateInfo stateInfo = animator.GetCurrentAnimatorStateInfo(0);
        float progress = stateInfo.normalizedTime;

        OnAnimationProgress?.Invoke(currentState.name, progress);

        // 检查动画是否结束
        if (progress >= 1.0f && !animator.IsInTransition(0))
        {
            OnAnimationEnd?.Invoke(currentState.name);
        }
    }

    private void CheckStateTransitions()
    {
        // 这里可以添加自定义的状态转换逻辑
        // 例如：根据游戏状态自动切换动画
    }

    // 获取当前动画信息
    public AnimationInfo GetCurrentAnimationInfo()
    {
        if (animator == null) return null;

        AnimatorStateInfo stateInfo = animator.GetCurrentAnimatorStateInfo(0);

        return new AnimationInfo
        {
            stateName = currentState?.name ?? "Unknown",
            normalizedTime = stateInfo.normalizedTime,
            length = stateInfo.length,
            isLooping = stateInfo.loop,
            speed = stateInfo.speed
        };
    }
}

// 动画请求类
[System.Serializable]
public class AnimationRequest
{
    public string animationName;
    public float fadeTime = 0.2f;
    public float playbackSpeed = 1.0f;
    public bool immediate = false;
    public Dictionary<string, object> parameters = new Dictionary<string, object>();
    public System.Action onComplete;
}

// 动画状态类
public class AnimationState
{
    public string name;
    public float startTime;

    public AnimationState(string name, float startTime)
    {
        this.name = name;
        this.startTime = startTime;
    }
}

// 动画信息类
public class AnimationInfo
{
    public string stateName;
    public float normalizedTime;
    public float length;
    public bool isLooping;
    public float speed;
}

这个高级动画控制器展示了Unity动画系统的深度应用，包括IK控制、动画队列管理、参数化控制等高级特性。

5. Unity架构设计模式与最佳实践

5.1 MVC架构在Unity中的应用

在大型Unity项目中，采用合适的架构模式对于代码的可维护性和可扩展性至关重要。MVC（Model-View-Controller）模式是一个经典的选择。

architecture-beta
    group api(cloud)[API Layer]

    service db(database)[Database] in api
    service cache(server)[Cache] in api
    service auth(server)[Auth Service] in api

    group business(server)[Business Logic]

    service gameLogic(server)[Game Logic] in business
    service playerMgr(server)[Player Manager] in business
    service inventoryMgr(server)[Inventory Manager] in business

    group presentation(client)[Presentation Layer]

    service ui(desktop)[UI System] in presentation
    service renderer(desktop)[Renderer] in presentation
    service input(desktop)[Input Handler] in presentation

    db:R --> L:gameLogic
    cache:R --> L:gameLogic
    auth:R --> L:playerMgr

    gameLogic:R --> L:ui
    playerMgr:R --> L:ui
    inventoryMgr:R --> L:ui

    input:R --> L:gameLogic
    ui:R --> L:renderer

图4：Unity MVC架构图 - 展示分层架构设计和组件间的依赖关系

5.2 事件驱动架构实现

using UnityEngine;
using System;
using System.Collections.Generic;

// 事件管理器 - 全局事件系统
public class EventManager : MonoBehaviour
{
    private static EventManager _instance;
    public static EventManager Instance
    {
        get
        {
            if (_instance == null)
            {
                GameObject go = new GameObject("EventManager");
                _instance = go.AddComponent<EventManager>();
                DontDestroyOnLoad(go);
            }
            return _instance;
        }
    }

    // 事件字典
    private Dictionary<Type, List<IEventListener>> eventListeners;
    private Dictionary<string, List<Action<object>>> stringEventListeners;

    // 事件队列 - 用于延迟处理
    private Queue<GameEvent> eventQueue;
    private bool isProcessingEvents;

    void Awake()
    {
        if (_instance == null)
        {
            _instance = this;
            DontDestroyOnLoad(gameObject);
            InitializeEventSystem();
        }
        else if (_instance != this)
        {
            Destroy(gameObject);
        }
    }

    void Update()
    {
        ProcessEventQueue();
    }

    private void InitializeEventSystem()
    {
        eventListeners = new Dictionary<Type, List<IEventListener>>();
        stringEventListeners = new Dictionary<string, List<Action<object>>>();
        eventQueue = new Queue<GameEvent>();

        Debug.Log("事件系统初始化完成");
    }

    // 注册事件监听器 - 泛型版本
    public void RegisterListener<T>(IEventListener<T> listener) where T : GameEvent
    {
        Type eventType = typeof(T);

        if (!eventListeners.ContainsKey(eventType))
        {
            eventListeners[eventType] = new List<IEventListener>();
        }

        if (!eventListeners[eventType].Contains(listener))
        {
            eventListeners[eventType].Add(listener);
        }
    }

    // 注销事件监听器
    public void UnregisterListener<T>(IEventListener<T> listener) where T : GameEvent
    {
        Type eventType = typeof(T);

        if (eventListeners.ContainsKey(eventType))
        {
            eventListeners[eventType].Remove(listener);

            // 清理空列表
            if (eventListeners[eventType].Count == 0)
            {
                eventListeners.Remove(eventType);
            }
        }
    }

    // 触发事件 - 立即处理
    public void TriggerEvent<T>(T gameEvent) where T : GameEvent
    {
        Type eventType = typeof(T);

        if (eventListeners.ContainsKey(eventType))
        {
            // 创建监听器列表的副本，防止在处理过程中修改
            List<IEventListener> listeners = new List<IEventListener>(eventListeners[eventType]);

            foreach (IEventListener listener in listeners)
            {
                if (listener is IEventListener<T> typedListener)
                {
                    try
                    {
                        typedListener.OnEventTriggered(gameEvent);
                    }
                    catch (Exception e)
                    {
                        Debug.LogError($"事件处理异常: {eventType.Name}, 错误: {e.Message}");
                    }
                }
            }
        }

        // 记录事件统计
        LogEventStatistics(eventType.Name);
    }

    // 队列事件 - 延迟处理
    public void QueueEvent<T>(T gameEvent) where T : GameEvent
    {
        eventQueue.Enqueue(gameEvent);
    }

    private void ProcessEventQueue()
    {
        if (isProcessingEvents || eventQueue.Count == 0) return;

        isProcessingEvents = true;

        // 限制每帧处理的事件数量，防止卡顿
        int maxEventsPerFrame = 10;
        int processedCount = 0;

        while (eventQueue.Count > 0 && processedCount < maxEventsPerFrame)
        {
            GameEvent gameEvent = eventQueue.Dequeue();
            TriggerEventInternal(gameEvent);
            processedCount++;
        }

        isProcessingEvents = false;
    }

    private void TriggerEventInternal(GameEvent gameEvent)
    {
        Type eventType = gameEvent.GetType();

        if (eventListeners.ContainsKey(eventType))
        {
            foreach (IEventListener listener in eventListeners[eventType])
            {
                try
                {
                    listener.HandleEvent(gameEvent);
                }
                catch (Exception e)
                {
                    Debug.LogError($"队列事件处理异常: {eventType.Name}, 错误: {e.Message}");
                }
            }
        }
    }

    // 字符串事件系统 - 用于简单的事件通信
    public void RegisterStringEvent(string eventName, Action<object> callback)
    {
        if (!stringEventListeners.ContainsKey(eventName))
        {
            stringEventListeners[eventName] = new List<Action<object>>();
        }

        stringEventListeners[eventName].Add(callback);
    }

    public void UnregisterStringEvent(string eventName, Action<object> callback)
    {
        if (stringEventListeners.ContainsKey(eventName))
        {
            stringEventListeners[eventName].Remove(callback);
        }
    }

    public void TriggerStringEvent(string eventName, object data = null)
    {
        if (stringEventListeners.ContainsKey(eventName))
        {
            foreach (Action<object> callback in stringEventListeners[eventName])
            {
                try
                {
                    callback?.Invoke(data);
                }
                catch (Exception e)
                {
                    Debug.LogError($"字符串事件处理异常: {eventName}, 错误: {e.Message}");
                }
            }
        }
    }

    // 事件统计
    private Dictionary<string, int> eventStatistics = new Dictionary<string, int>();

    private void LogEventStatistics(string eventName)
    {
        if (!eventStatistics.ContainsKey(eventName))
        {
            eventStatistics[eventName] = 0;
        }
        eventStatistics[eventName]++;
    }

    public void PrintEventStatistics()
    {
        Debug.Log("=== 事件统计 ===");
        foreach (var kvp in eventStatistics)
        {
            Debug.Log($"{kvp.Key}: {kvp.Value} 次");
        }
    }

    // 清理所有事件监听器
    public void ClearAllListeners()
    {
        eventListeners.Clear();
        stringEventListeners.Clear();
        eventQueue.Clear();
        eventStatistics.Clear();

        Debug.Log("所有事件监听器已清理");
    }
}

// 事件监听器接口
public interface IEventListener
{
    void HandleEvent(GameEvent gameEvent);
}

public interface IEventListener<T> : IEventListener where T : GameEvent
{
    void OnEventTriggered(T gameEvent);
}

// 游戏事件基类
public abstract class GameEvent
{
    public float timestamp;
    public string source;

    protected GameEvent()
    {
        timestamp = Time.time;
        source = "Unknown";
    }
}

// 具体事件类示例
public class PlayerHealthChangedEvent : GameEvent
{
    public int playerId;
    public int oldHealth;
    public int newHealth;
    public int maxHealth;

    public PlayerHealthChangedEvent(int playerId, int oldHealth, int newHealth, int maxHealth)
    {
        this.playerId = playerId;
        this.oldHealth = oldHealth;
        this.newHealth = newHealth;
        this.maxHealth = maxHealth;
        this.source = "PlayerHealthSystem";
    }
}

public class ItemCollectedEvent : GameEvent
{
    public int playerId;
    public string itemId;
    public int quantity;
    public Vector3 position;

    public ItemCollectedEvent(int playerId, string itemId, int quantity, Vector3 position)
    {
        this.playerId = playerId;
        this.itemId = itemId;
        this.quantity = quantity;
        this.position = position;
        this.source = "ItemSystem";
    }
}

// 事件监听器示例
public class UIHealthDisplay : MonoBehaviour, IEventListener<PlayerHealthChangedEvent>
{
    [Header("UI组件")]
    public UnityEngine.UI.Slider healthSlider;
    public UnityEngine.UI.Text healthText;

    void Start()
    {
        // 注册事件监听
        EventManager.Instance.RegisterListener<PlayerHealthChangedEvent>(this);
    }

    void OnDestroy()
    {
        // 注销事件监听
        if (EventManager.Instance != null)
        {
            EventManager.Instance.UnregisterListener<PlayerHealthChangedEvent>(this);
        }
    }

    public void OnEventTriggered(PlayerHealthChangedEvent eventData)
    {
        // 更新UI显示
        if (healthSlider != null)
        {
            healthSlider.value = (float)eventData.newHealth / eventData.maxHealth;
        }

        if (healthText != null)
        {
            healthText.text = $"{eventData.newHealth}/{eventData.maxHealth}";
        }

        // 播放血量变化效果
        if (eventData.newHealth < eventData.oldHealth)
        {
            PlayDamageEffect();
        }
        else if (eventData.newHealth > eventData.oldHealth)
        {
            PlayHealEffect();
        }
    }

    public void HandleEvent(GameEvent gameEvent)
    {
        if (gameEvent is PlayerHealthChangedEvent healthEvent)
        {
            OnEventTriggered(healthEvent);
        }
    }

    private void PlayDamageEffect()
    {
        // 实现受伤效果
        StartCoroutine(FlashRed());
    }

    private void PlayHealEffect()
    {
        // 实现治疗效果
        StartCoroutine(FlashGreen());
    }

    private System.Collections.IEnumerator FlashRed()
    {
        Color originalColor = healthSlider.fillRect.GetComponent<UnityEngine.UI.Image>().color;
        healthSlider.fillRect.GetComponent<UnityEngine.UI.Image>().color = Color.red;
        yield return new WaitForSeconds(0.2f);
        healthSlider.fillRect.GetComponent<UnityEngine.UI.Image>().color = originalColor;
    }

    private System.Collections.IEnumerator FlashGreen()
    {
        Color originalColor = healthSlider.fillRect.GetComponent<UnityEngine.UI.Image>().color;
        healthSlider.fillRect.GetComponent<UnityEngine.UI.Image>().color = Color.green;
        yield return new WaitForSeconds(0.2f);
        healthSlider.fillRect.GetComponent<UnityEngine.UI.Image>().color = originalColor;
    }
}

这个事件系统展示了Unity中松耦合架构的实现方式，通过事件驱动的设计模式实现了组件间的解耦合。

6. Unity性能分析与优化策略

6.1 性能瓶颈分析

在Unity开发中，性能优化是一个持续的过程。了解常见的性能瓶颈和优化策略对于创建流畅的游戏体验至关重要。

性能指标	目标值	优化重点	检测工具
帧率(FPS)	60+	渲染优化、脚本优化	Profiler
内存使用	<512MB	资源管理、GC优化	Memory Profiler
绘制调用	<100	批处理、合并网格	Frame Debugger
CPU使用率	<70%	算法优化、多线程	CPU Profiler
GPU使用率	<80%	着色器优化、LOD	GPU Profiler

6.2 综合性能优化系统

图5：Unity性能优化重点分布饼图 - 展示各优化领域的重要程度

using UnityEngine;
using UnityEngine.Profiling;
using System.Collections.Generic;
using System.Collections;

// 性能监控和优化管理器
public class PerformanceManager : MonoBehaviour
{
    [Header("性能监控设置")]
    public bool enableProfiling = true;
    public float profilingInterval = 1.0f;
    public int maxProfileSamples = 100;

    [Header("性能阈值")]
    public float targetFrameRate = 60f;
    public float lowFrameRateThreshold = 30f;
    public long maxMemoryUsage = 512 * 1024 * 1024; // 512MB

    [Header("优化设置")]
    public bool autoOptimization = true;
    public bool dynamicBatching = true;
    public bool gpuInstancing = true;

    // 性能数据
    private List<PerformanceData> performanceHistory;
    private PerformanceData currentPerformance;
    private float lastProfilingTime;

    // 优化状态
    private Dictionary<string, bool> optimizationStates;
    private List<IPerformanceOptimizer> optimizers;

    // 事件系统
    public System.Action<PerformanceData> OnPerformanceUpdated;
    public System.Action<string> OnOptimizationApplied;

    void Start()
    {
        InitializePerformanceSystem();
    }

    void Update()
    {
        if (enableProfiling && Time.time - lastProfilingTime >= profilingInterval)
        {
            UpdatePerformanceMetrics();
            lastProfilingTime = Time.time;
        }

        if (autoOptimization)
        {
            CheckAndApplyOptimizations();
        }
    }

    private void InitializePerformanceSystem()
    {
        performanceHistory = new List<PerformanceData>();
        optimizationStates = new Dictionary<string, bool>();
        optimizers = new List<IPerformanceOptimizer>();

        // 注册优化器
        RegisterOptimizers();

        // 设置Unity性能相关设置
        ConfigureUnityPerformanceSettings();

        Debug.Log("性能管理系统初始化完成");
    }

    private void RegisterOptimizers()
    {
        optimizers.Add(new RenderingOptimizer());
        optimizers.Add(new MemoryOptimizer());
        optimizers.Add(new ScriptOptimizer());
        optimizers.Add(new AudioOptimizer());
    }

    private void ConfigureUnityPerformanceSettings()
    {
        // 设置目标帧率
        Application.targetFrameRate = (int)targetFrameRate;

        // 配置质量设置
        QualitySettings.vSyncCount = 0; // 关闭垂直同步以获得更好的性能控制

        // 配置物理设置
        Time.fixedDeltaTime = 1.0f / 50.0f; // 50Hz物理更新

        // 配置渲染设置
        if (dynamicBatching)
            QualitySettings.SetQualityLevel(QualitySettings.GetQualityLevel(), true);
    }

    private void UpdatePerformanceMetrics()
    {
        Profiler.BeginSample("PerformanceManager.UpdateMetrics");

        currentPerformance = new PerformanceData
        {
            timestamp = Time.time,
            frameRate = 1.0f / Time.deltaTime,
            memoryUsage = Profiler.GetTotalAllocatedMemory(false),
            reservedMemory = Profiler.GetTotalReservedMemory(false),
            drawCalls = GetDrawCallCount(),
            triangles = GetTriangleCount(),
            cpuTime = GetCPUTime(),
            gpuTime = GetGPUTime()
        };

        // 添加到历史记录
        performanceHistory.Add(currentPerformance);

        // 限制历史记录数量
        if (performanceHistory.Count > maxProfileSamples)
        {
            performanceHistory.RemoveAt(0);
        }

        // 触发事件
        OnPerformanceUpdated?.Invoke(currentPerformance);

        Profiler.EndSample();
    }

    private void CheckAndApplyOptimizations()
    {
        if (currentPerformance == null) return;

        // 检查帧率
        if (currentPerformance.frameRate < lowFrameRateThreshold)
        {
            ApplyFrameRateOptimizations();
        }

        // 检查内存使用
        if (currentPerformance.memoryUsage > maxMemoryUsage)
        {
            ApplyMemoryOptimizations();
        }

        // 检查绘制调用
        if (currentPerformance.drawCalls > 100)
        {
            ApplyRenderingOptimizations();
        }
    }

    private void ApplyFrameRateOptimizations()
    {
        foreach (IPerformanceOptimizer optimizer in optimizers)
        {
            if (optimizer.CanOptimize("FrameRate"))
            {
                optimizer.ApplyOptimization("FrameRate", currentPerformance);
                OnOptimizationApplied?.Invoke($"FrameRate optimization by {optimizer.GetType().Name}");
            }
        }
    }

    private void ApplyMemoryOptimizations()
    {
        // 强制垃圾回收
        System.GC.Collect();

        foreach (IPerformanceOptimizer optimizer in optimizers)
        {
            if (optimizer.CanOptimize("Memory"))
            {
                optimizer.ApplyOptimization("Memory", currentPerformance);
                OnOptimizationApplied?.Invoke($"Memory optimization by {optimizer.GetType().Name}");
            }
        }
    }

    private void ApplyRenderingOptimizations()
    {
        foreach (IPerformanceOptimizer optimizer in optimizers)
        {
            if (optimizer.CanOptimize("Rendering"))
            {
                optimizer.ApplyOptimization("Rendering", currentPerformance);
                OnOptimizationApplied?.Invoke($"Rendering optimization by {optimizer.GetType().Name}");
            }
        }
    }

    // 获取性能统计信息
    public PerformanceStatistics GetPerformanceStatistics()
    {
        if (performanceHistory.Count == 0) return null;

        PerformanceStatistics stats = new PerformanceStatistics();

        float totalFrameRate = 0;
        long totalMemory = 0;
        int totalDrawCalls = 0;

        foreach (PerformanceData data in performanceHistory)
        {
            totalFrameRate += data.frameRate;
            totalMemory += data.memoryUsage;
            totalDrawCalls += data.drawCalls;
        }

        int count = performanceHistory.Count;
        stats.averageFrameRate = totalFrameRate / count;
        stats.averageMemoryUsage = totalMemory / count;
        stats.averageDrawCalls = totalDrawCalls / count;

        // 计算最小和最大值
        stats.minFrameRate = float.MaxValue;
        stats.maxFrameRate = float.MinValue;

        foreach (PerformanceData data in performanceHistory)
        {
            if (data.frameRate < stats.minFrameRate)
                stats.minFrameRate = data.frameRate;
            if (data.frameRate > stats.maxFrameRate)
                stats.maxFrameRate = data.frameRate;
        }

        return stats;
    }

    // 辅助方法
    private int GetDrawCallCount()
    {
        // 这里需要使用Unity的内部API或第三方工具
        // 简化实现，实际项目中需要更精确的方法
        return UnityEngine.Rendering.FrameDebugger.enabled ?
               UnityEngine.Rendering.FrameDebugger.count : 0;
    }

    private int GetTriangleCount()
    {
        // 简化实现
        return 0; // 实际需要统计场景中的三角形数量
    }

    private float GetCPUTime()
    {
        return Time.deltaTime * 1000f; // 转换为毫秒
    }

    private float GetGPUTime()
    {
        // 需要使用GPU性能分析工具
        return 0f;
    }

    // 导出性能报告
    public void ExportPerformanceReport(string filePath)
    {
        StartCoroutine(ExportReportCoroutine(filePath));
    }

    private IEnumerator ExportReportCoroutine(string filePath)
    {
        System.Text.StringBuilder report = new System.Text.StringBuilder();
        report.AppendLine("Unity Performance Report");
        report.AppendLine($"Generated at: {System.DateTime.Now}");
        report.AppendLine("================================");

        PerformanceStatistics stats = GetPerformanceStatistics();
        if (stats != null)
        {
            report.AppendLine($"Average Frame Rate: {stats.averageFrameRate:F2} FPS");
            report.AppendLine($"Min Frame Rate: {stats.minFrameRate:F2} FPS");
            report.AppendLine($"Max Frame Rate: {stats.maxFrameRate:F2} FPS");
            report.AppendLine($"Average Memory Usage: {stats.averageMemoryUsage / (1024 * 1024):F2} MB");
            report.AppendLine($"Average Draw Calls: {stats.averageDrawCalls}");
        }

        report.AppendLine("\nDetailed Performance History:");
        foreach (PerformanceData data in performanceHistory)
        {
            report.AppendLine($"{data.timestamp:F2}s - FPS: {data.frameRate:F2}, " +
                            $"Memory: {data.memoryUsage / (1024 * 1024):F2}MB, " +
                            $"DrawCalls: {data.drawCalls}");
        }

        try
        {
            System.IO.File.WriteAllText(filePath, report.ToString());
            Debug.Log($"性能报告已导出到: {filePath}");
        }
        catch (System.Exception e)
        {
            Debug.LogError($"导出性能报告失败: {e.Message}");
        }

        yield return null;
    }
}

// 性能数据结构
[System.Serializable]
public class PerformanceData
{
    public float timestamp;
    public float frameRate;
    public long memoryUsage;
    public long reservedMemory;
    public int drawCalls;
    public int triangles;
    public float cpuTime;
    public float gpuTime;
}

// 性能统计结构
public class PerformanceStatistics
{
    public float averageFrameRate;
    public float minFrameRate;
    public float maxFrameRate;
    public long averageMemoryUsage;
    public int averageDrawCalls;
}

// 性能优化器接口
public interface IPerformanceOptimizer
{
    bool CanOptimize(string category);
    void ApplyOptimization(string category, PerformanceData currentData);
}

// 渲染优化器实现
public class RenderingOptimizer : IPerformanceOptimizer
{
    public bool CanOptimize(string category)
    {
        return category == "Rendering" || category == "FrameRate";
    }

    public void ApplyOptimization(string category, PerformanceData currentData)
    {
        // 实现渲染优化逻辑
        // 例如：降低阴影质量、减少光源数量、启用LOD等

        if (currentData.drawCalls > 50)
        {
            // 启用GPU Instancing
            // 合并材质
            // 使用静态批处理
        }

        if (currentData.frameRate < 30)
        {
            // 降低渲染质量
            QualitySettings.DecreaseLevel();
        }
    }
}

// 内存优化器实现
public class MemoryOptimizer : IPerformanceOptimizer
{
    public bool CanOptimize(string category)
    {
        return category == "Memory";
    }

    public void ApplyOptimization(string category, PerformanceData currentData)
    {
        // 实现内存优化逻辑
        Resources.UnloadUnusedAssets();
        System.GC.Collect();

        // 清理对象池中的过期对象
        // 压缩纹理
        // 卸载未使用的音频资源
    }
}

// 脚本优化器实现
public class ScriptOptimizer : IPerformanceOptimizer
{
    public bool CanOptimize(string category)
    {
        return category == "FrameRate" || category == "CPU";
    }

    public void ApplyOptimization(string category, PerformanceData currentData)
    {
        // 实现脚本优化逻辑
        // 减少Update调用频率
        // 使用协程替代复杂计算
        // 启用多线程处理
    }
}

// 音频优化器实现
public class AudioOptimizer : IPerformanceOptimizer
{
    public bool CanOptimize(string category)
    {
        return category == "Memory" || category == "CPU";
    }

    public void ApplyOptimization(string category, PerformanceData currentData)
    {
        // 实现音频优化逻辑
        // 压缩音频格式
        // 减少同时播放的音频数量
        // 使用音频池管理
    }
}

这个性能管理系统展示了Unity中全面的性能监控和优化策略，包括实时监控、自动优化和详细的性能分析功能。

7. Unity跨平台开发与部署

7.1 跨平台架构设计

Unity的跨平台能力是其最大的优势之一，但要充分利用这一特性，需要合理的架构设计和平台适配策略。

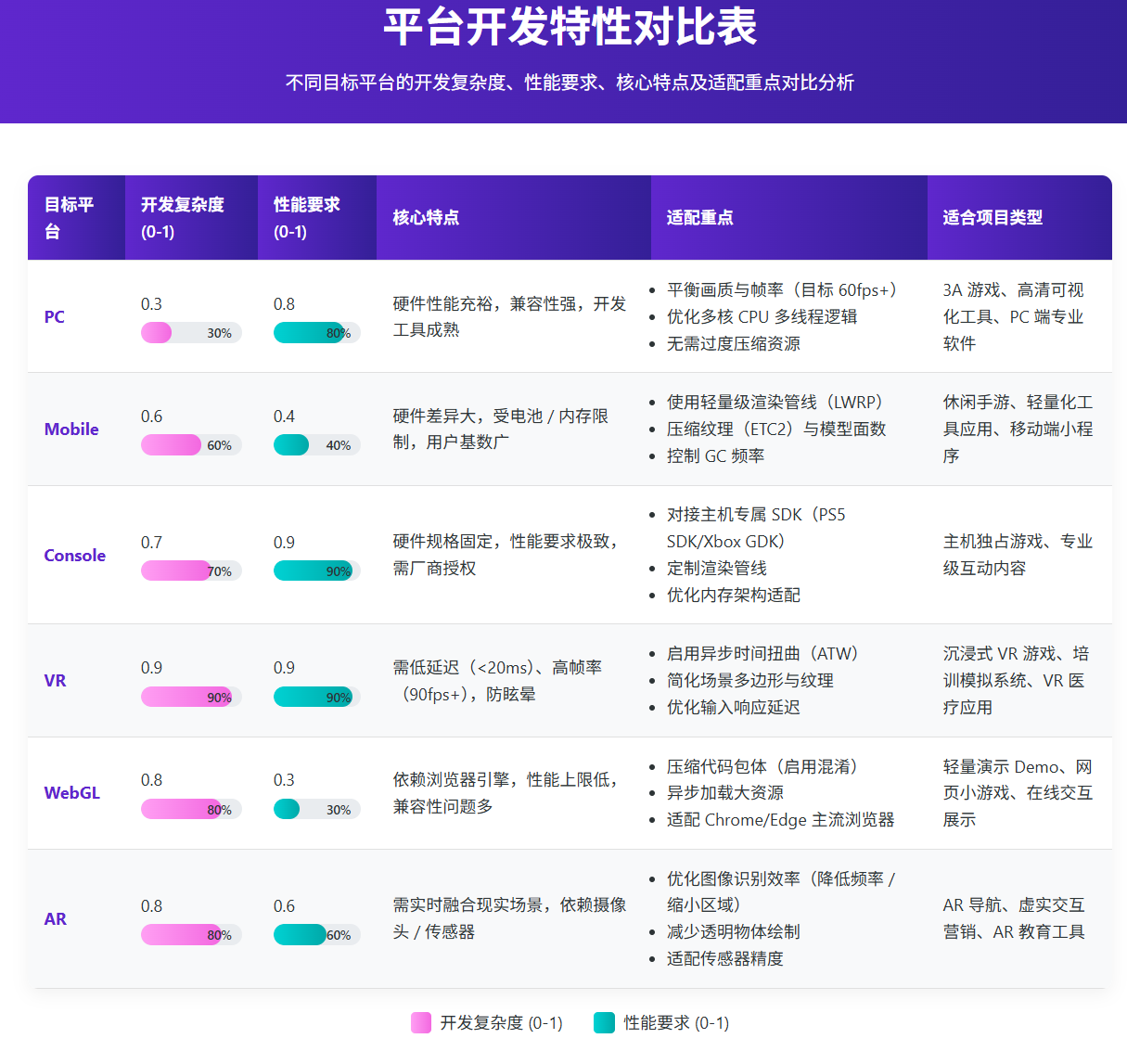

表：Unity跨平台开发复杂度与性能要求象限图 - 展示不同平台的开发特点

“跨平台开发的核心不是一次编写到处运行，而是一次设计多处适配。每个平台都有其独特的特性和限制，优秀的跨平台应用应该充分利用各平台的优势，同时规避其劣势。” —— Unity跨平台开发最佳实践

总结

在这篇深度技术解析中，我作为蒋星熠Jaxonic，带领大家从Unity的基础架构开始，逐步深入到高级的性能优化和跨平台开发策略。通过六个主要章节的详细讲解，我们全面探索了Unity游戏开发的核心技术和最佳实践。

从组件化系统的精髓到事件驱动架构的实现，从渲染管线的深度解析到物理系统的高级应用，每一个技术点都体现了Unity作为现代游戏引擎的强大能力。特别是在性能优化方面，我们不仅分析了常见的性能瓶颈，还提供了完整的监控和优化解决方案，这对于开发高质量的游戏产品至关重要。

在我多年的Unity开发经验中，我深刻体会到架构设计的重要性。一个良好的架构不仅能够提高开发效率，更能够确保项目的可维护性和可扩展性。通过MVC模式、事件系统、对象池等设计模式的合理运用，我们可以构建出既高效又优雅的游戏系统。

Unity的动画系统和物理引擎为游戏的表现力提供了强大的支撑。通过程序化的动画控制和高级的碰撞检测系统，我们能够创造出更加生动和真实的游戏体验。而跨平台开发能力则让我们的作品能够触达更广泛的用户群体，这正是Unity在游戏开发领域占据重要地位的关键因素。

性能优化是一个永恒的话题，特别是在移动设备和Web平台上，资源的合理利用直接影响用户体验。通过系统化的性能监控和智能化的优化策略，我们可以确保游戏在各种设备上都能流畅运行。

展望未来，Unity正在向着更加智能化和自动化的方向发展。新的渲染管线、改进的ECS系统、以及对新兴平台的支持，都为游戏开发者提供了更多的可能性。作为技术从业者，我们需要保持学习的热情，不断探索新的技术和方法，才能在这个快速发展的领域中保持竞争力。

■ 我是蒋星熠Jaxonic！如果这篇文章在你的技术成长路上留下了印记
■ 👁 【关注】与我一起探索技术的无限可能，见证每一次突破
■ 👍 【点赞】为优质技术内容点亮明灯，传递知识的力量
■ 🔖 【收藏】将精华内容珍藏，随时回顾技术要点
■ 💬 【评论】分享你的独特见解，让思维碰撞出智慧火花
■ 🗳 【投票】用你的选择为技术社区贡献一份力量
■ 技术路漫漫，让我们携手前行，在代码的世界里摘取属于程序员的那片星辰大海！

参考链接

1. Unity官方文档 - 组件系统详解
2. Unity性能优化最佳实践指南
3. Unity渲染管线深度解析
4. Unity物理系统开发者指南
5. Unity跨平台开发策略与实践

关键词标签

Unity游戏开发 组件化架构 性能优化 跨平台开发 游戏引擎技术

转载自CSDN-专业IT技术社区

原文链接：https://blog.csdn.net/2301_79139273/article/details/151728367
